Roller Shade Fabrics

Roller Shade Fabrics for Window Covering Manufacturers & Wholesalers

Architectural-grade roller shade fabrics engineered for contract window treatment manufacturers, commercial interior contractors, and automated blind assemblers. Direct roll-to-roll supply featuring precise openness factors, certified fire retardancy, and dimensional stability for large-span motorized systems.

↵

Product Range

Screen Fabrics (Fiberglass Core):

PVC-coated fiberglass yarns providing high stiffness, minimal thermal expansion, and optimal outward visibility. Ideal for motorized commercial facades.

Blackout Fabrics (Polyester Base):

Multi-pass acrylic-coated or foam-extruded blackout constructions achieving 100% light blockage and acoustic dampening for hospitality and healthcare.

Translucent / Light Filtering Fabrics:

Blended polyester-cotton or 100% polyester weaves designed to diffuse direct glare while maintaining interior daylighting metrics.

Outdoor Woven Bamboo Roll Up Blind Fabric Roll

Key Features

Dimensional Stability:

Fiberglass core constructions limit elongation to <0.5%, preventing edge-curl and telescoping on roller tubes exceeding 3 meters in width.

Solar Heat Gain Control:

Engineered openness factors (1%, 3%, 5%, 10%) regulate solar energy transmittance and reflectance, lowering HVAC cooling loads.

Acoustic Absorption:

Multi-layer blackout variants achieve NRC ratings up to 0.55, mitigating reverberation in open-plan office spaces.

Edge-Cut Cleanliness:

Heat-set thermosetting processes prevent fraying and edge-curling during ultrasonic or cold-knife cutting operations.

Technical Specifications

Specification	Fiberglass Screen Fabric	Polyester Blackout Fabric
Composition	30% Fiberglass / 70% PVC	100% Polyester with multi-pass acrylic coating
Fabric Width	200cm, 250cm, 300cm, 320cm	250cm, 300cm
Weight	420 g/m² - 550 g/m²	380 g/m² - 450 g/m²
Thickness	0.55 mm - 0.75 mm	0.65 mm - 0.85 mm
Openness Factor	1%, 3%, 5%, 10%	0% (Opaque)
Fire Retardancy	NFPA 701, DIN 4102 B1, BS 5867	NFPA 701, DIN 4102 B1
Color Fastness	Grade 8 (ISO 105-B02, Xenon arc)	Grade 7-8 (ISO 105-B02)
Roll Length	30m / 50m standard per master roll	30m / 50m standard per master roll

Performance & Material Options

01.

Yarn Substrates:

E-glass continuous filament yarns (high tensile strength, zero moisture absorption) and high-tenacity polyester filament yarns (high tear resistance).

02.

Coatings:

UV-stabilized monomeric and polymeric PVC formulations; low-VOC aqueous acrylic foam layers.

03.

Environmental Standards:

GREENGUARD Gold certified for low chemical emissions; OEKO-TEX Standard 100 class IV (free of restricted heavy metals and formaldehyde).

04.

Anti-Microbial Treatment:

Sanitized silver-ion additive integration for healthcare and humid environments, inhibiting mold growth and bacterial proliferation.

Manufacturing & Quality Control

Weaving Equipment:

Dornier rapier looms maintaining constant warp tension to eliminate yarn spacing irregularities and wavy selvedges.

Coating Lines:

Direct-roll and knife-over-roll coating systems with infrared curing ovens ensuring uniform dry film thickness and adhesion strength.

Inspection Protocol:

Inline optical defect detection systems coupled with manual 100% roll inspection under D65 daylight simulation light boxes.

Testing Instrumentation:

Spectrophotometers (Delta E color batch control), tensile strength testers (ASTM D5034 grab test), and radiant panel flammability chambers in-house.

Customization & OEM

Width Slitting:

Precision ultrasonic and crush-cut slitting to customized narrow widths with sealed edges.

Color Matching:

Custom pantone or RAL matching supported by spectrophotometric lab-dip formulations within 48 hours.

Embossing & Patterning:

Custom jacquard weaves, micro-perforations, and dual-sided color configurations (dark exterior for glare control, light interior for interior reflectance).

Packaging:

Heavy-duty cardboard cores (inner diameter 76mm/50mm), wrapped in moisture-barrier PE film and suspended in reinforced dual-wall corrugated shipping boxes.

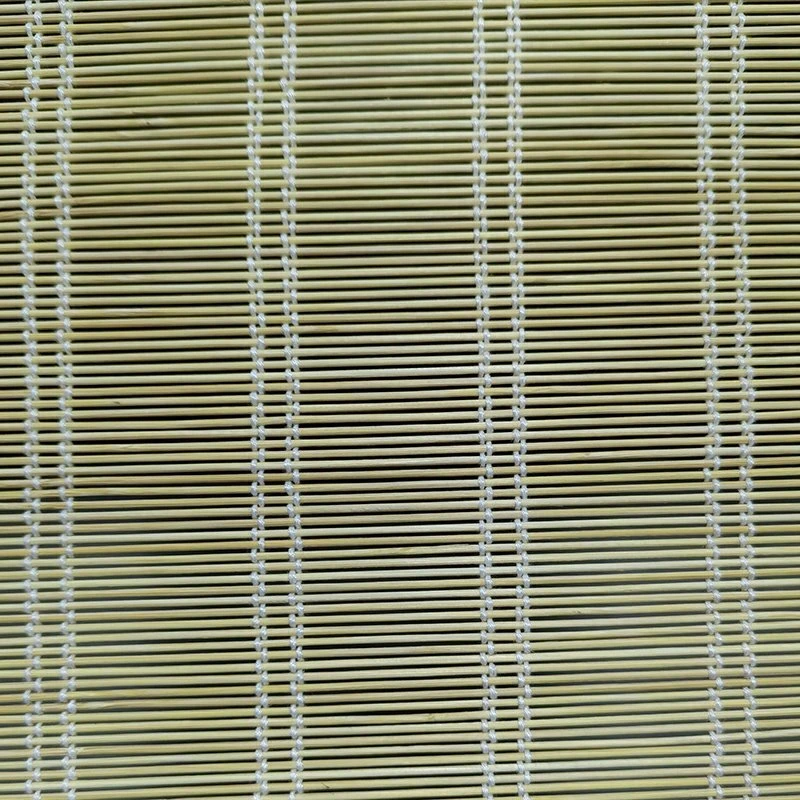

Blackout Woven Bamboo Roller Blind Fabric

Applications

Motorized roller blinds for commercial curtain wall facades.

Cassette-enclosed blackout shades for healthcare patient rooms and operating theaters.

Dual roller shade systems (combining screen and blackout fabrics) in corporate boardrooms.

Skylight and atrium shading solutions requiring high wind-load resistance and low sag.

Our Factory

FAQ

Q: What is the minimum order quantity (MOQ) for custom-colored fabrics?

A: Standard catalog colors have an MOQ of 1 roll (30 linear meters). Custom Pantone matches require a minimum production run of 1,000 linear meters per width/color combination.

Q: How do you prevent telescoping during automated blind fabrication?

A: We control warp-weft squareness during the heat-setting stage and measure residual shrinkage to within <= 0.2% at 70°C for 2 hours, ensuring straight rolling behavior on tubes up to 4 meters.

Q: Are test reports available for building code compliance?

A: Yes. Every production batch includes a Certificate of Analysis (COA) detailing physical properties, and independent laboratory test reports for NFPA 701 and DIN 4102-B1 are supplied upon request.

Q: What is the standard lead time for bulk orders?

A: Ex-stock items ship within 5 business days. Custom coating, slitting, or custom color developments require 15 to 21 business days from lab-dip approval.

We're well-known as one of the leading roller shade fabrics manufacturers and suppliers in China, featured by quality products and good service. Please rest assured to wholesale high-end roller shade fabrics in stock here from our factory. We also accept customized orders.
